Oil free Screw Compressor :
DSP Series V-type
Máy nén khí Trục vít không dầu Hitachi :  22Kw ~ 55Kw


Nội dung chi tiết:

Máy nén khí Trục vít không dầu Hitachi :  22Kw ~ 55Kw



Oilfree Screw Compressor : DSP Series V-type [Single Stage] Air-Cooled Type : Specifications

Model

item, unit

Without Dryer Model

Dryer built-in Model

DSP-22VA5I
DSP-22VA6I

DSP-37VA5I
DSP-37VA6I

DSP-55VA5I
DSP-55VA6I

DSP-22VAR5I
DSP-22VAR6I

DSP-37VAR5I
DSP-37VAR6I

DSP-55VAR5I
DSP-55VAR6I

Rated specs

Discharge air pressure

MPa

0.69

Capacity

m3/min

3.4

4.2

6.4

3.4

4.2

6.4

In PQ wide mode

Discharge air pressure

MPa

0.39

0.49

0.39

0.49

Capacity

m3/min

4.3

5.0

8.2

4.0

5.0

7.6

Operating range of PQ wide mode

MPa

0.39 - 0.69

0.49 - 0.69

0.39 - 0.69

0.49 - 0.69

Intake air press./temp.

°C

Atmospheric pressure /0-40

Atmospheric Pressure/5-40

Driving method

V-belt + Gear-driven

Capacity control system

Inverter control + purge control

Discharge air temperature

°C

Atmospheric temperature + 15 or less

Discharge pipe diameter

B

1

1 1/2

1

1 1/2

Motor Output

kW

22

37

55

22

37

55

Motor type

4-pole TEFC Motor

Starting Method

Inverter

Cooling fan motor output

kW

0.75

0.75

0.9

0.75

0.75

0.9

Coolant pump motor output

kW(50/60Hz)

0.2/0.3

Lubricating oil capacity

L

12(Not filled in)

18(Not filled in)

12(Not filled in)

18(Not filled in)

Dryer

Dew point of outlet air

Celsius

10 or Less (Ambient temp.30 celsius)

Chiller output

kW

1.1

Refrigerant

HFC-R407C

Fan motor output

W

25

120

Weight

kg

850

1,080

1,180

880

1,230

1,330

Dimensions (W × D × H)

mm

1,650 × 970 × 1,400

1,780 × 980 × 1,500

1,650 × 970 × 1,400

2,180 × 980 × 1,500

Noise level (1.5m from front side)

dB[A]

63

66

68

63

66

68



Note:

1 . Capacity is the converted value at its inlet condition.

2 . The appearance and specifications are subject to change without prior notice.

3 . Do not use any of the compressors with a respiratory device that directly sucks compressed air.

4 . Motor output is the nominal output.

5.  The discharge air pressure is the gauge pressure.

6 . Sound level is the value in an anechoic room from 1.5m at full load.

7 . Install the compressor indoors in an atmosphere free of explosive and corrosive gases and at a place not exposed to excessive moisture or dust.

8 . When operating at the lowest pressure within PQ WIDEMODE range, the dew point of outlet air increases approx. 3°C

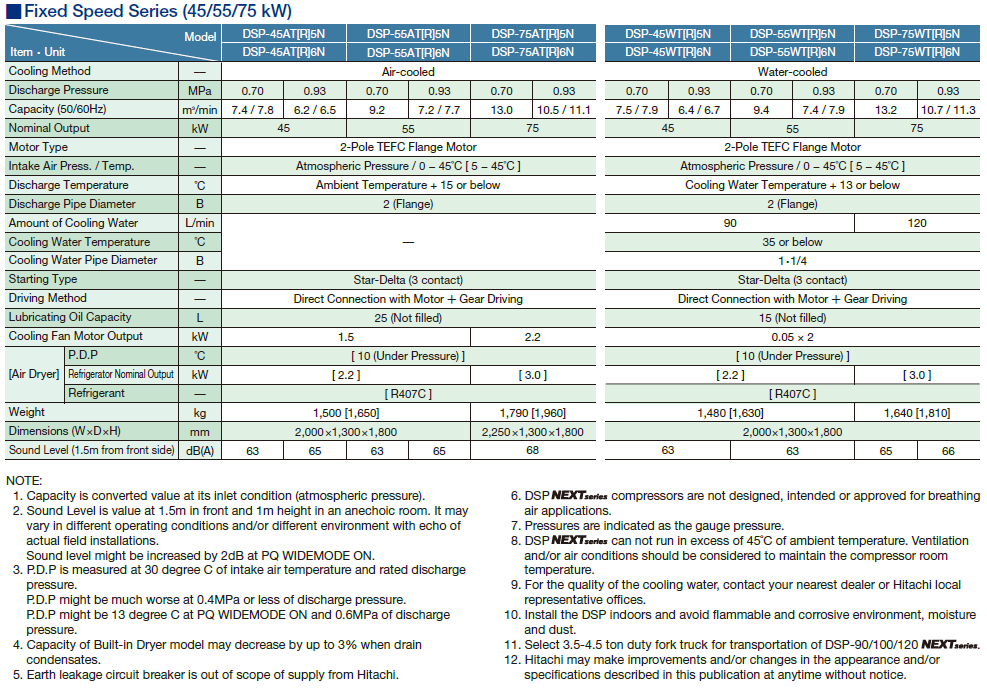

HISCREW NEXT Series
